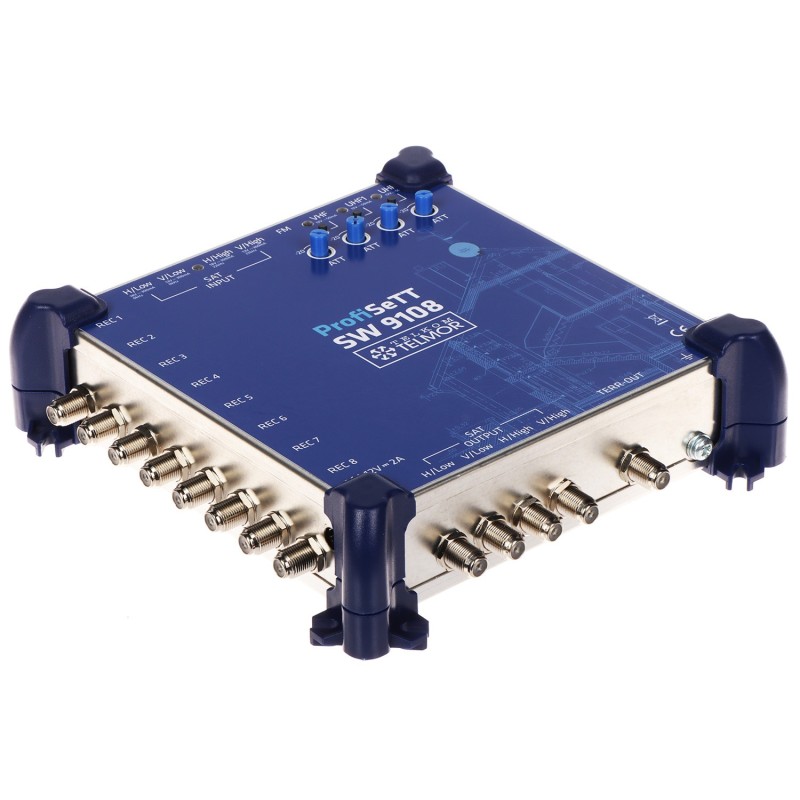

MultiBAS SW-9108 ProfiSET TELMOR

Frequency range:

87 MHz ... 112 MHz - FM, 170 MHz ... 240 MHz - VHF / DAB, 470 MHz ... 694 MHz - UHF1, UHF2 950 MHz ... 2150 MHz - SAT

Gain :

15 dB @ FM 15 dB @ VHF / DAB 25 dB @ UHF1, UHF2 -2 dB ... 6 dB @ SAT

Inputs:

8 pcs

Outputs:

8 pcs 5 pcs (Loop through)

Pre-amplifiers powering:

12 V DC : 50 mA / VHF/DAB, UHF1, UHF2 input

Gain adjustment:

-20 dB ... 0 dB (for single line)

Maximal output level DIN45004B:

> 95 dBµV - FM

> 95 dBµV - VHF

> 95 dBµV - UHF1, UHF2

> 94 dBµV - SAT

Return loss:

> 10 dB

S/N ratio:

< 17 dB - FM

< 10 dB - VHF

< 12 dB - UHF1, UHF2

Main features:

ProfiSETT product series DVB-T, DVB-T2, DAB, DAB+ compliance Dual UHF input for installations requiring signal reception from different directions 5G Protected Technology Continuous gain adjustment High isolation between inputs : > 20 dB Gain adjustment High level of shielding

Power supply:

12 V DC / 2 A (power adapter included)

Power consumption:

24 W (max)

Operation temp:

0 °C ... 50 °C

Weight:

0.63 kg

Dimensions:

192 x 185 x 50 mm

Manufacturer / Brand:

TELMOR

Guarantee:

2 years
