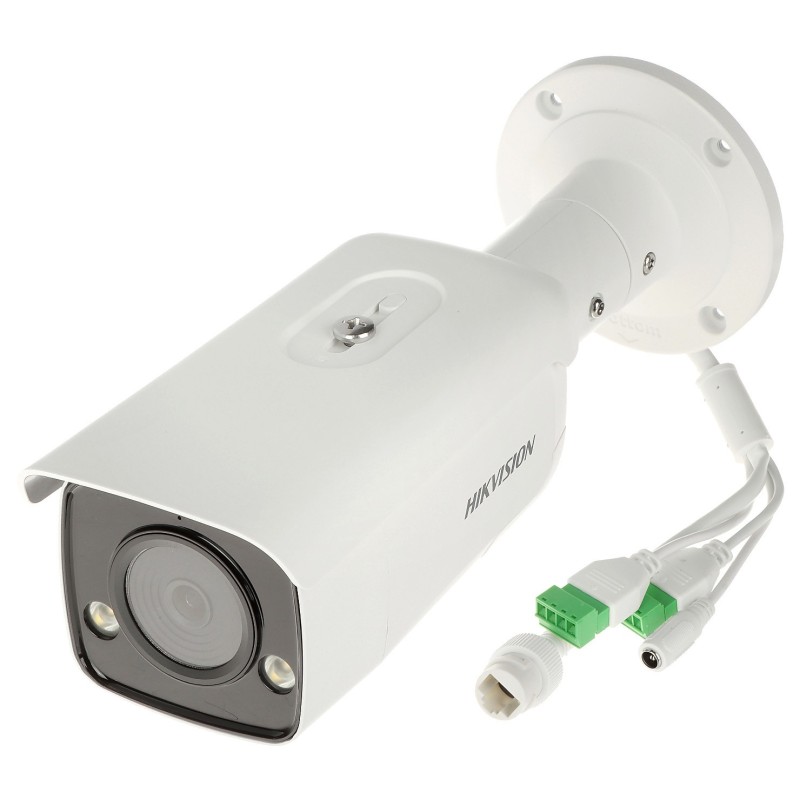

IP CAMERA DS-2CD2T46G2-ISU/SL(4MM)(C) ACUSENSE - 4and Mpx Hikvision

Standard:

TCP/IP

Sensor:

1/3 " Progressive Scan CMOS

Matrix size:

4 Mpx

Resolution:

2688 x 1520 - 4 Mpx ,

1920 x 1080 - 1080p ,

1280 x 720 - 720p

Lens:

2.8 mm

View angle:

83 °

Compression:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Range of IR illumination:

60 m

Alarm inputs / outputs:

1 / 1

Audio:

Microphone built-in, 1 Input 1 Output Speaker built-in - Alarm siren Bi-directional audio streaming support

Memory card slot:

Micro SD memory cards up to 512GB support (possible local recording)

Main stream frame rate:

25 fps @ 4 Mpx

Network interface:

10/100 Base-T (RJ-45)

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

Mobile phones support:

Port no.: 8000 or access by a cloud (P2P) Android: Free application iOS (iPhone): Free application

Default admin user / password:

admin / -

The administrator password should be set at the first start

Default IP address:

192.168.1.64

Web browser access ports:

80

PC client access ports:

Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application

Mobile client access ports:

8000

Port ONVIF:

80

RTSP URL:

Main stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/ - with authorization Sub stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/ - with authorization

RS-485 interface:

Main features:

Camera from AcuSense series WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction BLC/HLC - Back Light / High Light Compensation ROI - improve the quality of selected parts of image Anti-Flicker - The technology eliminates the tiring eyes flickering image effect ANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its NAS - Network Attached Storage support - allows to connect memory resources directly to the computer network SVC (Scalable Video Coding) - technology enabling the transfer of several sub-streams of different quality within one stream Day/night mode ICR - Movable InfraRed filter Auto White Balance AGC - Automatic Gain Control Possibility to change the resolution, quality and bit rate Sharpness - sharper image outlines Image rotation and mirror Configurable Privacy Zones Filtering of false alarms based on the recognition of persons and vehicles Camera from AcuSense series Light and sound alarm, Smart motion detection (with recognizing people and vehicles) Intelligent Image Analysis : intrusion, crossing the line (tripwire), detection of entry into the area / exit from the area, scene changing, face detection, advanced face capture features

Power supply:

PoE (802.3af), 12 V DC / 880 mA

Power consumption:

≤ 12 W @ PoE (802.3af) ≤ 10.5 W @ 12 V DC

Housing:

Compact, Aluminum alloy

Color:

White

"Index of Protection":

IP67

Operation temp:

-30 °C ... 60 °C

Supported languages:

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Italian

Weight:

1.16 kg

Dimensions:

Ø 105 x 288 mm

Manufacturer / Brand:

Hikvision

SAP Code:

311315146

Guarantee:

3 years
