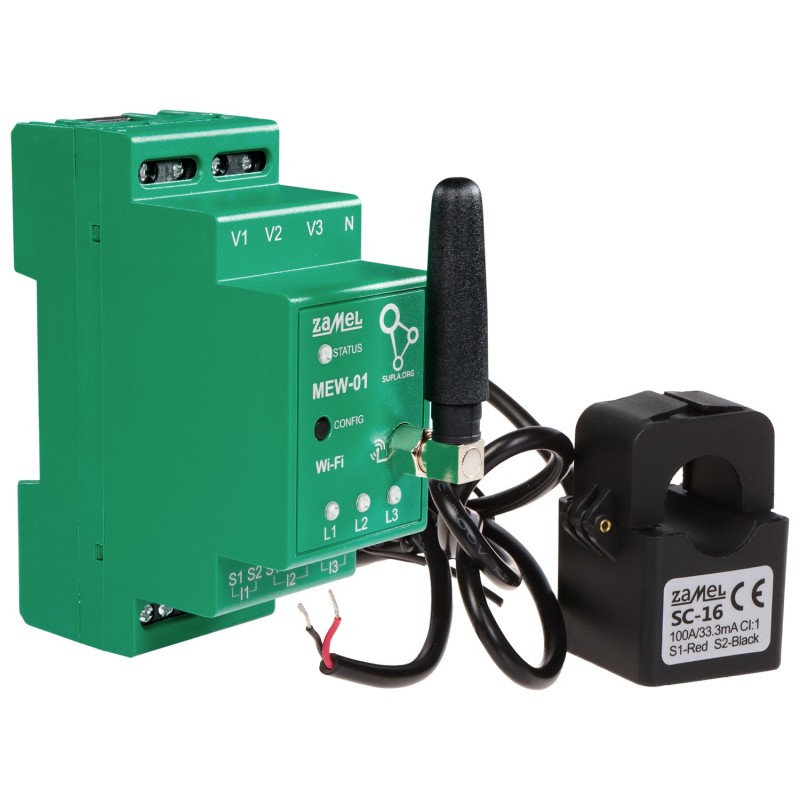

ELECTRIC ENERGY MONITOR MEW-01/1F SUPLA ONE-PHASE ZAMEL

Support:

SUPLA

Device type:

Electric Energy Monitor, One-phase / Three-phase

Wireless:

Wi-Fi, 2.4 GHz - IEEE 802.11 b/g/n

Rated voltage:

230 V / 400 V AC, 50  / 60 Hz

Voltage tolerance:

-20 % ... 15 %

Measurement unit:

kWh

Measurement method:

Semi-indirect measurement using an current transformer - 1 pcs included

Current:

100 A - Max. current

LCD display:

RS-485 ports:

Connectors type:

screw terminals max. 2.5 mm²

Mobile phones support:

The free application on Android

The free application on iOS

Measured parameters:

frequency Voltage Current Nominal power Reactive power Apparent Power Power factor Phase angle Active power consumed Active power returned Reactive power consumed Reactive power returned

Main features:

Control from a Web browser Data export in "*.csv", "*.ods", "*.xlsx", "*.html" formats Working with Home Assistant, Grafana, Zabbix, Power BI Compliance with the MQTT protocol Two-way monitor Monitoring of voltage spikes LED indication Possibility to manually program scenarios from the built-in API Possibility of integration with external software The external SMA RP connector allows to move the antenna outside the distribution board

Housing:

Plastic, DIN, TS-35 rail mounting

"Index of Protection":

IP20

Operation temp:

-10 °C ... 55 °C

Width in 17.5 mm modules:

2

Weight:

0.1 kg

Dimensions:

90  x 84  x 35 mm

Manufacturer / Brand:

ZAMEL

Guarantee:

2 years
