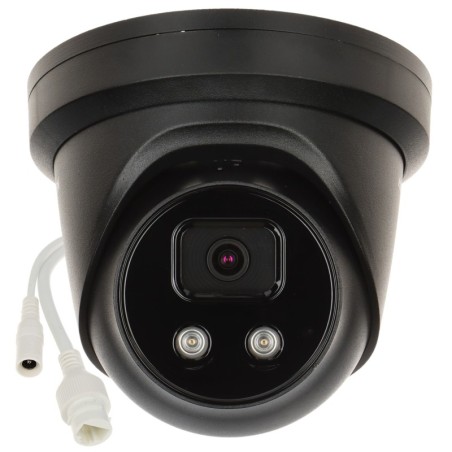

IP CAMERA DS-2CD2346G2-IU(2.8MM)(C)(BLACK) ACUSENSE - 4and Mpx Hikvision

Standard:

TCP/IP

Sensor:

1/3 " Progressive Scan CMOS

Matrix size:

4 Mpx

Resolution:

2688 x 1520 - 4 Mpx ,

1920 x 1080 - 1080p ,

1280 x 720 - 720p

Lens:

2.8 mm

View angle:

103 °

Range of IR illumination:

30 m

RS-485 interface:

Memory card slot:

Micro SD memory cards up to 512GB support (possible local recording)

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Alarm inputs / outputs:

Audio:

Microphone built-in Audio transmission via network Noise suppression and echo cancellation

Main stream frame rate:

25 fps @ 4 Mpx

Network interface:

10/100 Base-T (RJ-45)

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

Main features:

WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image Anti-Flicker - The technology eliminates the tiring eyes flickering image effect SVC (Scalable Video Coding) - technology enabling the transfer of several sub-streams of different quality within one stream BLC/HLC - Back Light / High Light Compensation ICR - Movable InfraRed filter Possibility to change the resolution, quality and bit rate Configurable Privacy Zones Image rotation and mirror Filtering of false alarms based on the recognition of persons and vehicles Smart motion detection (with recognizing people and vehicles) Intelligent Image Analysis : crossing the line (tripwire), intrusion, detection of entry into the area / exit from the area, classification of people and vehicles, scene changing, face detection

Mobile phones support:

Port no.: 8000 or access by a cloud (P2P) Android: Free application iOS: Free application

Default IP address:

192.168.1.64

Default admin user / password:

admin / -

The administrator password should be set at the first start

Web browser access ports:

80

PC client access ports:

Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application

Mobile client access ports:

8000

Port ONVIF:

80

RTSP URL:

Main stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/ - with authorization Sub stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/ - with authorization

Power supply:

PoE (802.3af), 12 V DC / 480 mA

Power consumption:

≤ 6.8 W @ PoE (802.3af) ≤ 5.8 W @ 12 V DC

Housing:

Dome, Metal

Color:

Black

"Index of Protection":

IP67

Vandal-proof:

Operation temp:

-30 °C ... 60 °C

Weight:

0.74 kg

Dimensions:

Ø 138 x 126 mm

Supported languages:

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Italian

Manufacturer / Brand:

Hikvision

SAP Code:

311316465

Guarantee:

3 years
