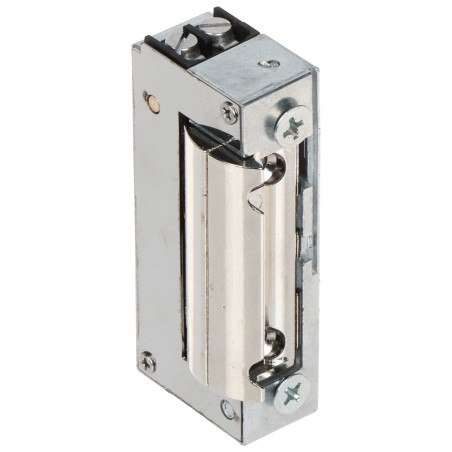

ELECtrIC StrIKE XS24R REVERSIBLE Hartte BIRA

Rated voltage:

20 ... 26 V DC

Current consumption:

100 mA @ 24 V DC

Application:

right-side door / left-side door

Ratched lock:

Memory function:

Reverse action:

Clearance adjustment:

3.5 mm

Allowable load of the door impacting the lock:

3000 N

Allowable uninterrupted operation time:

unlimited

Main features:

Symmetrical housing Narrow profile : 16.2 mm, Operation mode : NO Resistance : 230 Ω Number of opening cycles : 200000 Radial shape of the latch - when opening the latch is not going beyond the outline of electric strike

Weight:

0.136 kg

Dimensions:

16.2 x 28 x 67 mm

Manufacturer / Brand:

BIRA

Guarantee:

2 years
