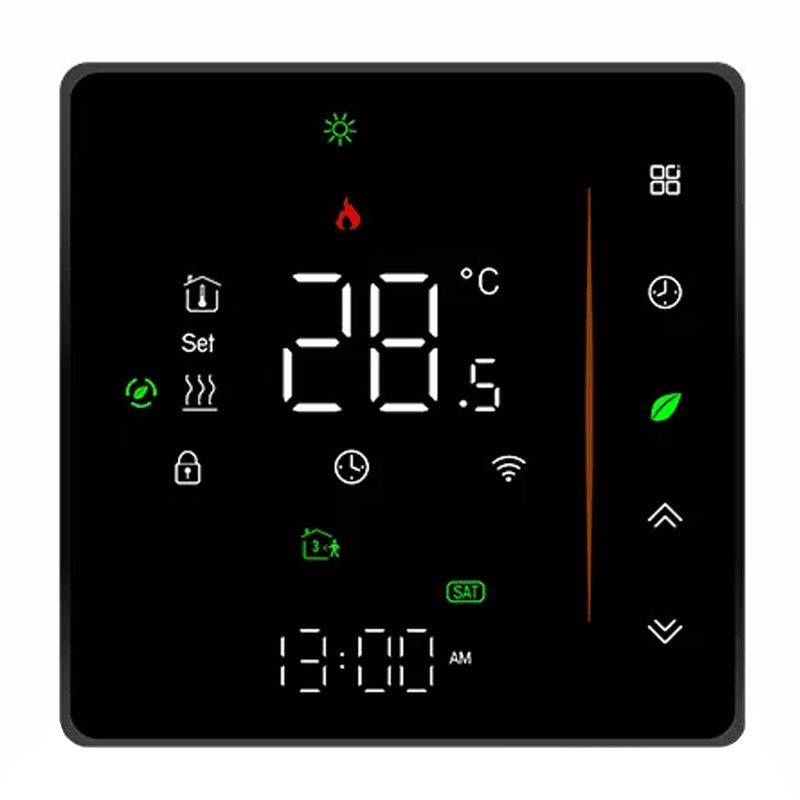

Normally Open Thermostat 5A Black TRZ65C ZigBee TUYA

The latest model of thermostats shows the temperature on the screen and in the application. This is a short-circuit model for stoves and boilers.

Smart ZigBee thermostat for the TUYA application for home heating and building automation applications

Product main features:

It has a precise built-in temperature sensor and the ability to connect an external sensor to the heated floor using an NTC3950, 10K cable (not included)

LED display with adjustable brightness

Temperature correction configuration between -9°C and 9°C

Minimum and maximum temperature settings

Protection against power loss in the form of saving individual settings

Control via touch interface and free application for IOS or Android

Aesthetic, modern appearance and convenient operation

Fits standard Polish flush-mounted boxes

Programming 7 days a week with 4 cycle changes per day - for every day of the week and two days of the weekend

Sharing control via the application with many users

Works with Google Home and Amazon Alexa - with devices compatible with these systems

Requires an external ZigBee gateway.

Intelligent scenarios allow you to expand the thermostat's functions

Device with IP20 protection level

ATTENTION! For proper operation of the device, you need an additional ZigBee gateway available in our offer.

Heating management

Set the switching schedule for 7 days a week, up to four cycle changes per day. You can easily adjust the temperature cycles to your needs. Extend additional schedules by creating intelligent scenarios.

Use your thermostat's pre-programmed mode to fully optimize your home heating. Set your schedule to take into account lowering the temperature at night and when no one is at home. If you need to make adjustments, you can always do it quickly by changing parameters in your phone app or advanced settings in your thermostat. You can make changes from any location with Internet access. By programming the schedule correctly, you can be sure that you are not wasting money on heating an empty house.

Automations

Connect several smart devices to the thermostat and expand the range of possibilities, thanks to which most settings and heating changes will be applied in accordance with previously planned actions. Smart scenarios are supported in the native TUYA application. Create your own automations without limits.

Automations using manual or programmable mode

Response settings based on changes in the user's location (GPS on the phone), schedules, functions of other peripheral devices in the TUYA ecosystem and weather changes

Intuitive touch panel and interface

The thermostat was manufactured with a screen overlapping the outer frame. It fits perfectly into a modern interior. The large touch screen has the ability to adjust the brightness in two programs between 6:00 - 22:00 and 22:00 - 06:00. Two lighting modes will make the device less invasive than traditional thermostats for your interior design.

The device software in the TUYA application is intuitive and enriched with all basic thermostat settings. In a few seconds you can change the settings, temperature and even childproof the device.

Build your own smart home

No chiseling walls or running cables!

The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called cloud. TUYA

It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can use the application to build a network of intelligent dependencies. The operation of the devices depends only on the creativity of the user.

The list of wireless system components is constantly expanding in our offer.

Smart App from Tuya inc. it is an essential element of the entire smart home ecosystem. It allows you to control all applications with Tuya technology. It is free to download for iOS and Android smartphones.

There are already over half a million different smart devices supported by Tuya technology. The application is available in many languages, both in Polish. It allows you to connect products via any communication protocol, from Wifi to Bluetooth to ZigBee.

For more demanding users, Tuya offers a cloud service for an additional fee, thanks to which all device registry will be stored remotely in the cloud, which will increase your security.

The main advantages of the Smart App:

Fast registration and easy operation of multiple devices.

Home management and sharing access to devices between family members.

Communication via all protocols and even without a connection supported by Pegasus technology, so your devices will always be connected.

Voice control via peripherals such as Amazon Alexa or Google Assistant.

Advanced automationconnected smart devices.

Event notifications directly on your smartphone.

Basics of the ZigBee protocol:

The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings

ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection

Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules

On a WiFi network with 25 devices you will start to experience network issues. You can easily add over 50 devices to the ZigBee hub

The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved months ago

ZigBee communication consumes very little energy, which gives a long battery life.

Technical Specifications:

Max load: 5A

Communication: ZigBee 3.0

Power supply: 95-240 VAC, 50~60Hz

Possible connection of an external sensor: NTC3950, 10K (not included)

Accuracy: ±1°C

Setting range temp.: 5°C - 35°C

Setting range floor temperature: 5°C - 99°C

Displayed temperature range: 5°C - 99°C

Temp. operating: 0°C ~ 45°C

Operating humidity: 5% ~ 95% RH

Power consumption: <1.5W

Material: PC + ABS (fireproof)

Fits standard 60mm cans

Dimensions: 86mm x 86mm

Protection class: IP20

Type of buttons; touch

Included:

5A normally open thermostat

Instruction

Screws for assembly

Product code: TRZ065C
