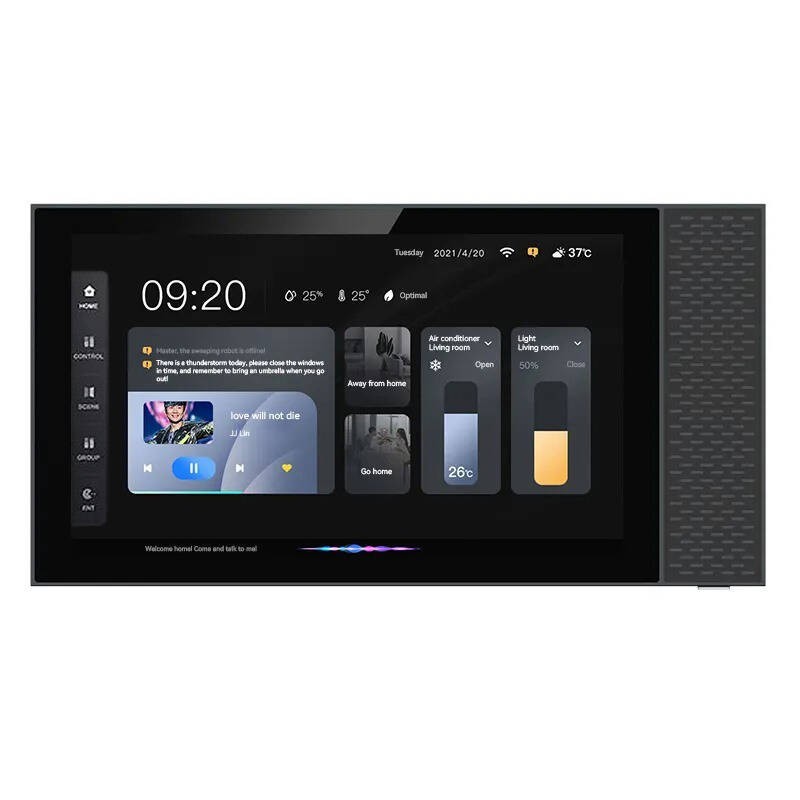

Touchpad 7 ZigBee WiFi Ethernet Gateway TUYA

Multi-tasking function panel with a 7-inch touch screen, audio input and output

Main advantages:

Bright and intuitive 7-inch LCD touch screen

The panel connects to the network via 2.4 GHz WiFi or an Ethernet cable

On the panel you will see most of the previously added Zigbee devices to the TUYA Smart application

Add up to 100 ZigBee devices to the Panel gate

Display the current time and weather on the Panel

Supports TF cards (8GB)

Configuration of additional basic devices available from the main screen

Access to rooms and devices in each of the selected rooms throughout the house

Operating thermostats, lighting, opening/closing curtains, music volume from the panel

Possibility to select, enable/disable color change, brightness of LED lighting devices from the panel.

Quick access to ready-made TAP scenarios TO RUN from the buttons on the panel

Built-in 4 microphones

Attention! For proper installation, it will be necessary to modify the current box. Boxes matching the device are included in the set.

Command center in an expanded panel with 7 touch screens. Panel with a special application supporting TUYA devices and scenarios

Control an unlimited number of devices connected to the free TUYA application. Add ZigBee devices to the Panel gateway. Manage all rooms by grouping them into individual rooms in the application. Create your own device automations to interact with your behavior or the applications you choose. Control your surroundings by programming advanced notifications and reactions to sensors placed around your home. Change the status of all intelligent lighting devices, control the color and light intensity of LED controllers or bulbs. And if you are in a hurry, turn on/off all or selected devices with one click, letting you know that you are leaving, and the panel will do the rest for you.

\ n

Give yourself unprecedented comfort when using smart devices. Multifunctional panel 7 is a unique solution from our offer, which will intuitively function as a control panel for managing the entire smart home in any way using scenarios and controlling added devices.

The high-quality touch screen has an IPS matrix.

The model is designed in the system Android 8.1 and has an input for audio circuits, an input for lighting circuits, as well as external ports - RS485 and Ethernet. The connected Ethernet cable option will replace WiFi communication, so the device can operate uninterruptedly in your network.

You will not need an additional ZigBee gateway due to the built-in function, which will replace an additional central device for ZigBee devices. Moreover, as the central point of your smart home, you will have control over most devices connected to the TUYA Smart application.

Choose smart scenarios prepared by you. Adjust devices according to activities (turn on/off), weather, location when entering or leaving a room at a distance of up to 100 meters, schedules divided into single and cyclical, and event status of other smart devices.

The intuitive interface allows for very convenient and flexible changes in settings. The screen will display a clear overview of the devices and the status of possible changes. Every user will derive incredible pleasure from using the product. All changes in the house, regardless of the room, will be available in one place.

Due to the location of the panel in the flush-mounted plate, manufacturers have added the option of connecting two lighting circuits, thanks to which you can get rid of the unnecessary element of a standard switch right next to the panel. Lighting channels can be controlled as an additional built-in option or remotely from your phone.

Newly developed speaker can freely switch

Industry's first support for freely switching between your own speakers, and external speakers. Meet the needs of various scenarios.

The panel has its own 2W speaker: it can be used to wake up, react and combine scenes. The panel is equipped with a high-power amplifier that can be connected to two 2x25W speakers. Customers who need to listen to music can choose from their own speakers or Bluetooth speakers.

Build your own smart home

The device works wirelessly with other peripherals and actuators in one environment in the so-called cloud.

It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements, you can build a network of intelligent dependencies using the application. The operation of the devices depends only on the user's creativity.

List of wireless elementssystem is constantly expanding our offer.

Smart App from Tuya inc. it is an essential element of the entire smart home ecosystem. It allows you to control all applications with Tuya technology. It is free to download for iOS and Android smartphones.

There are already over half a million different smart devices supported by Tuya technology. The application is available in many languages, both in Polish. It allows you to connect products via any communication protocol, from Wifi to Bluetooth to ZigBee.

For more demanding users, TUYA offers a cloud service for an additional fee, thanks to which all device registers will be stored remotely in the cloud, which will increase your security.

The main advantages of the Smart App application :

Quick registration and simple operation of multiple devices.

Home management and sharing access to devices between family members.

Communication via all protocols and even without a connection supported by Pegasus technology, so your devices will always be connected.

Voice control using peripheral devices such as Amazon Alexa or Google Assistant.

Advanced automation of connected smart devices.

Event notifications directly on your smartphone.

\ nTechnical specifications:

Input voltage: 110V - 250V AC 50/60Hz

Output voltage: 2 circuits, ≤10-25W 4-8Ω

Communication: WIFI 2.4GHz, Bluetooth, Ethernet

Acceptable room humidity: 5% - 90% RH (non-condensing)

CPU: Quad-core Cortex 1.5GHz

ROM: 8GB

Screen: 7, 1024x600HD IPS

Dimensions: 214.6mm x 114.6mm x 11.5mm

In the set:

Touch panel 7 ZigBee WiFi TUYA

2pcs of screws

Instruction

Box

Mounting bracket

Product code: T502
