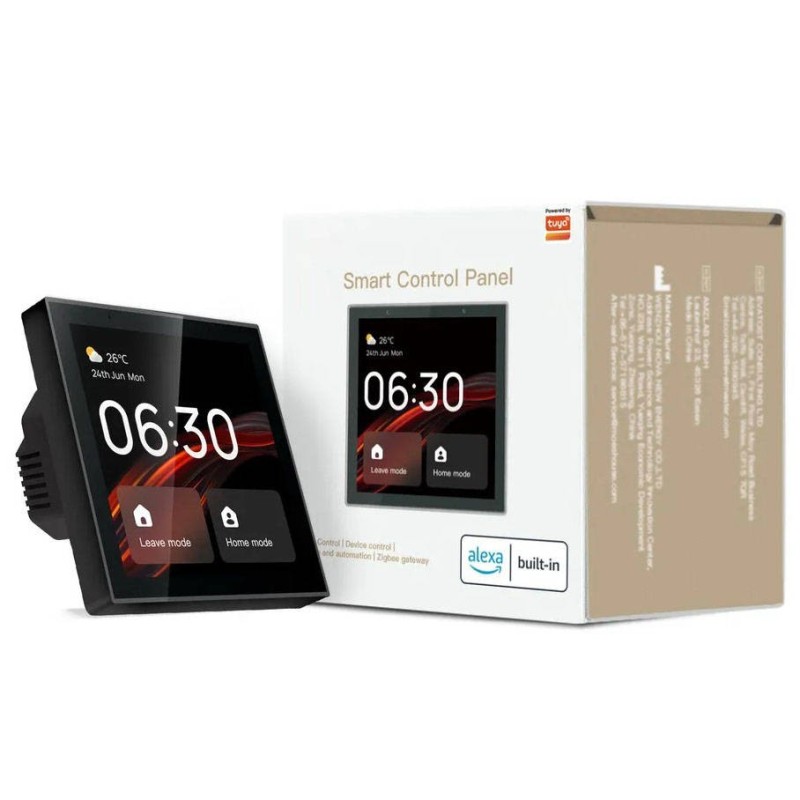

Panel Alexa LCD 4 multibramka ZigBee WiFi BT TUYA

Intelligent LCD touch panel 4 TUYA for home control with the additional function of a ZigBee/Bluetooth gateway.

The first panel in our offer with a built-in Amazon Alexa voice assistant! Control your devices by touch from the panel or by voice using Amazon Alexa voice commands.

Just connect the device to a 230 V power supply and then pair it with the application using your home WiFi router!

The most important advantages:

Possibility to control devices by voice using the built-in Amazon Alexa assistant

Bright, clear LCD 4 touch screen

Possibility to add 50 ZigBee devices and 25 Bluetooth devices to the panel

Based on the stable liNUX system

\ nThe panel supports cameras and video doorbells!

Reading data from temperature and humidity sensors

There are two buttons on the main screen to which we can connect any device or scene

The panel connects to the Internet via WiFi - for its operation All you need is your home router. Additionally, the device is a ZigBee gateway, so you do not have to buy another device

On the panel you will see most of the devices previously added to the TUYA Smart application

Displaying the current time and weather on the Google Weather panel

Setting the home screen background from many available ones presets

Possibility to configure additional basic devices available from the main screen after swiping up

Configuring the visibility of rooms and devices in these rooms to be categorized in the panel

The panel has buttons for scenes previously set in the application

The first panel that allows you to control connected devices using the built-in Alexa voice assistant!

Thanks to compatibility with Amazon Alexa, you can issue voice commands to the panel to control individual devices. Connect the panel with your home smart ecosystem to control all devices in your home.

Command center in the 4th panel. Panel with a special application supporting TUYA devices and scenarios

Control an unlimited number of ZigBee devices connected to the free TUYA application. Add ZigBee and Bluetooth devices to the Panel. Manage all rooms by grouping them into individual rooms in the application. Create your own device automations to interact with your behavior or the applications you choose. Control your surroundings by programming advanced notifications and reactions to sensors placed around your home. Change the status of all intelligent lighting devices, control the color and light intensity of LED controllers or bulbs. And if you're in a hurry, turn on/off all or selected devices with one click, letting you know that you're leaving, and the panel will do the rest for you.

If you prefer control over all rooms and settings in a simple and elegant panel in one place, the T505 will suit you. on top of your essential devices!

The gateway itself

The T505 panel is not just an ordinary panel, it is also a gateway that you can connect to via Bluetooth or ZigBee all intelligent peripheral products.

Control your entire home

The panel is extremely intuitive and allows you to control most of the devices that you have previously directly added to the advanced and free smart home management application - TUYA Smart!

Organize your space by dividing devices directly into individual rooms, so that you never get lost in the countless number of intelligent solutions!

Lighting

Adjust all light sources in rooms regardless of their location. Set the temperature of the bulbs according to your preferences. Do you want the light to change to the rhythm of music or film? If the controller or bulb allows it, you can set this action via the panel.

Motion sensors

Simply swipe down and select sensors to see the status of all connected sensors and sensors. In the stylish interface you will find information about the status of devices and temperatures, status and values ​​​​responsible for each connected accessory.

Heating

Control your thermostats located throughout the house from one place!

Security

Arm the alarm in a few seconds. A very useful option when you are in a hurry, just click one button and the previously programmed alarm will sound as recommended right after you leave the house.

Weather

On the main screen you can see the current weather conditions in the area that you have defined as yours in the TUYA application. Data is downloaded from the Google Weather application.

Lighting

Adjust all light sources in rooms regardless of their location. Set the temperature of the bulbs according to your preferences. Do you want the light to change to the rhythm of music or film? If the controller or bulb allows it, you can set this partactivity via the panel.

Motion sensors

Simply swipe down and select sensors to see the status of all connected sensors and sensors. In the stylish interface you will find information about the status of devices and temperatures, status and values ​​​​responsible for each connected accessory.

Security

Arm the alarm in a few seconds. A very useful option when you are in a hurry, just click one button and the previously programmed alarm will sound as recommended right after you leave the house.

Weather

On the main screen you can see the current weather conditions in the area that you have defined as yours in the TUYA application.

nVoice control

Works with Google Assistant and Amazon Alexa voice assistants.

Basics of the ZigBee protocol:

The ZigBee protocol works on 2.4 GHz frequency that propagates well in buildings

ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as a signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection

Devices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi needs about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage in automating smart rules

On a WiFi network, with 25 devices you will start to experience network problems. You can easily add over 50 devices to the ZigBee central unit

The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved for months back

ZigBee communication consumes very little energy, which gives a long battery life.

Specification:\ n

Input voltage: 100 - 240 V AC 50/60 Hz

Communication: Bluetooth, WiFi, ZigBee 3.0

Fits in a standard 60 mm flush-mount box

WiFi wireless protocol standard: 2.4 GHz

Temp. operating temperature: 0℃ ~ 40℃

Permissible room humidity: 5% - 90% RH (non-condensing)

Material: ABS

Dimensions: 86 x 86 x 36 mm

Included :

Intelligent ZigBee gateway panel with built-in Alexa voice assistant for home control 4 TUYA

User manual

Installation screws

Product code: T505
