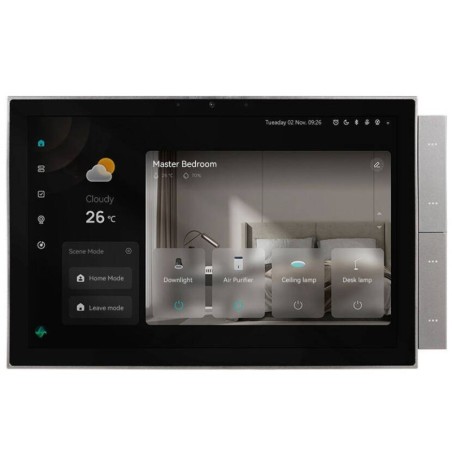

T510 PRO multi-tasking function panel with 10th Retina touch screen with built-in Amazon Alexa voice assistant

There is a PRO version of the T510 model. It has the ability to connect an Ethernet cable, two lighting circuits and an RS485 port!

This multifunctional device is also a functional panel and a ZigBee Bluetooth multigate!

The device allows you to control most devices from the screen using the TUYA application. Add device widgets to the home screen, so you will have quick access to the functions of a given device!

You do not need an additional gateway to operate ZigBee or BT devices - the panel also functions as a gateway.

Possibility to control devices by voice using the Amazon Alexa assistant (built-in voice assistant , you don't have to buy an additional speaker to control the devices with voice!)

The panel has physical buttons to which we can assign various functions: sound control, screen brightness control, any scene created in the TUYA application and two electrical circuits!

It also has an intercom, thanks to which we can connect to devices such as door locks, gates or traffic lights!

The manufacturer has introduced an update thanks to which more devices are displayed on the panel that were not visible before!

e.g.:

- Support for the SWTZ28 2-channel roller shutter controller

- 1, 2, 3 and 4 channel OXT (currently you can control each channel separately from the panel)

- T211G gate controller

- Additionally, Spotify has been added!

\ n

Main advantages:

Bright and intuitive LCD 10 TFT touch screen

PRO version also offers the ability to connect two lighting circuits

Possibility to connect to the Internet via an Ethernet cable

Thanks to the built-in application, you can wirelessly transfer files between the panel and the phone!

RS485 port

The panel additionally connects to the network via 2.4 GHz WiFi

Possibility to connect headphones, speakers or other Bluetooth devices to the panel

Built-in 5 megapixel camera (possibility to physically cover the camera with a built-in cap)

Built-in sensor contactless! The panel detects when you approach it and activates the screen

On the panel you will see most of the ZigBee devices previously added to the TUYA Smart application (after updating, you can control additional devices!)

The panel also works as a multigateway and you can add up to approx. 25 Bluetooth devices and up to 50 devices ZigBee

Displaying the current time and weather on the panel (data downloaded from the network)

Possibility to control devices by voice using the Amazon Alexa assistant (built-in voice assistant, you don't have to buy an additional speaker to control devices by voice!)

The device has an intercom

Option to change the style home screen from many available presets

Possibility to set a screensaver and the exact time when the screen should be turned on

Configuration of additional devices available from the home screen - ability to set widgets

Access to rooms and devices in each of the selected rooms, throughout the house

Thermostat support, lighting, light switches, dimmers, LED controllers, curtain robots, cameras, music volume from the panel and many other functions

Possibility to turn on/off/change the color and brightness of LED lighting devices from the panel

Quick access to ready-made TAP TO RUN scenarios created in the TUYA application from the buttons on the panel

Built-in microphone

Screen resolution: 1920 x 1200

Refresh rate: 60 Hz

Color gamut: 16.7 million

HD screen with a smooth Retina display will take you on a journey so you can see every detail . This unique screen has been designed to fit perfectly into your home. The screen resolution is very high, 1920x1200 pixels, which guarantees amazing image details. Additionally, the screen offers a maximum color gamut of 16.7 million, which makes images rich and vibrant. The adaptive refresh rate of 60 Hz ensures smooth and clear display of content.

Command center in an expanded panel with 10 touch screens Control an unlimited number of connected devices to the free TUYA application. Add ZigBee devices to the panel gateway. Manage all rooms by grouping them into individual rooms in the application. Create your own device automations to interact with your behavior or the applications you choose. Control your surroundings by programming advanced notifications and reactions to sensors placed around your home. Change the status of all intelligent lighting devices, control the color and light intensity of LED controllers or bulbs. If you are in a hurry, turn on/off all or selected devices with one clickm, informing you that you are leaving and the panel will do the rest for you.

Built-in camera

The panel is equipped with a 5 megapixel camera , with a specially designed curtain! Feel safe when you are not using the camera! The camera works in two directions!

Provide yourself with incredible comfort when using smart devices. Multifunctional panel 10 is a unique solution from our offer, which will intuitively act as a control panel for managing the entire smart home in any way, using scenarios and controlling added devices. The high-quality touch screen with a smooth Retina display has an IPS matrix. Additionally, there are 4 switches next to the screen. Using the application, you can assign various functions to the buttons - volume control, screen brightness control or launching any scene created in the TUYA application! * Illustrative photos - the product may differ slightly depending on the delivery.

You will not need an additional gateway due to the built-in function, which will replace an additional device such as a ZigBee gateway. In addition, you will be able to control most devices connected to the TUYA Smart application. Select intelligent scenarios prepared by you and adjust devices according to activities (turn on/off), weather, location when entering or leaving the room at a distance of up to 100 meters, schedules divided into single and cyclical and event status of other smart devices. The intuitive interface allows for very convenient and flexible changes in settings. The screen will display a clear overview of the devices and the status of possible changes. Every user will derive incredible pleasure from using this product.

Build your own smart home

The device cooperates wirelessly with other peripheral devices and actuators in one environment in the so-called cloud. It is possible to build advanced control of home devices, warning or alarm system in a very simple way, using other cooperating elements. The operation of the devices depends only on the user's creativity. The number of elements of the wireless system is constantly being expanded in our offer.

A panel that allows you to control connected devices using using the built-in Alexa voice assistant

Thanks to compatibility with Amazon Alexa, you can give voice commands to the panel to control individual devices. Connect the panel with your home smart ecosystem to control all devices in your home.

Tuya Smart is an essential element of the entire smart home ecosystem. It is free to download on smartphones with iOS and Android. Over half a million different smart devices are supported by the Tuya application. The application is available in many languages, including Polish. It allows you to connect products via various communication protocols, from WiFi via Bluetooth to ZigBee. For more demanding users, Tuya offers a cloud service for an additional fee, thanks to which the history of devices will be stored remotely in the cloud, which will increase your security. The main advantages of the Tuya Smart application: Fast registration and simple operation of multiple devices

Home management and sharing access between family members

Communication via various protocols

Voice control using Amazon Alexa or Google Assistant

Advanced automation of connected smart devices

Event notifications directly on the smartphone

\ n

WiFi, ZigBee and Bluetooth support!

The multi-functionality of the panel allows us to meet most of our customers' expectations!

Basics of the ZigBee protocol: The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings.

ZigBee connectivity is MESH connectivity, which means that each ZigBee device with full L+N power works as signal amplifier for other devices. If a remote sensor does not have communication with the ZigBee gateway, it is enough that it has radio communication with another ZigBee device with full L+N power that has communication with the gateway (up to a maximum of 3 devices). The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection

The devices benefit fromdevices using the ZigBee protocol connect to the control panel in 0.2 seconds in the event of a state change, and WiFi takes about 5 seconds to connect to the network after a state change. ZigBee devices have a huge advantage in automating smart rules

On a WiFi network, with 25 devices you will start to experience network problems. You can easily add over 50 devices to the ZigBee central station

The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved for months back

ZigBee communication consumes very little energy, which gives a long battery life.

Technical specifications:\ nInput voltage: 110 V - 250 V AC, 50/60 Hz

Communication: WiFi 2.4 GHz, Bluetooth, ZigBee 3.0

Amazon Alexa voice control

RS485 port

Internet connection: WiFi, Ethernet

Permissible room humidity: 5% - 90 % RH (non-condensing)

CPU: quad-core

Screen: 10, 1920 × 1200 IPS

Dimensions: 259.4 × 161.4 × 13 mm

Included: Touchpad 10 ZigBee WiFi Bluetooth Ethernet RS485 TUYA

Manual

n

Product code: T510P
