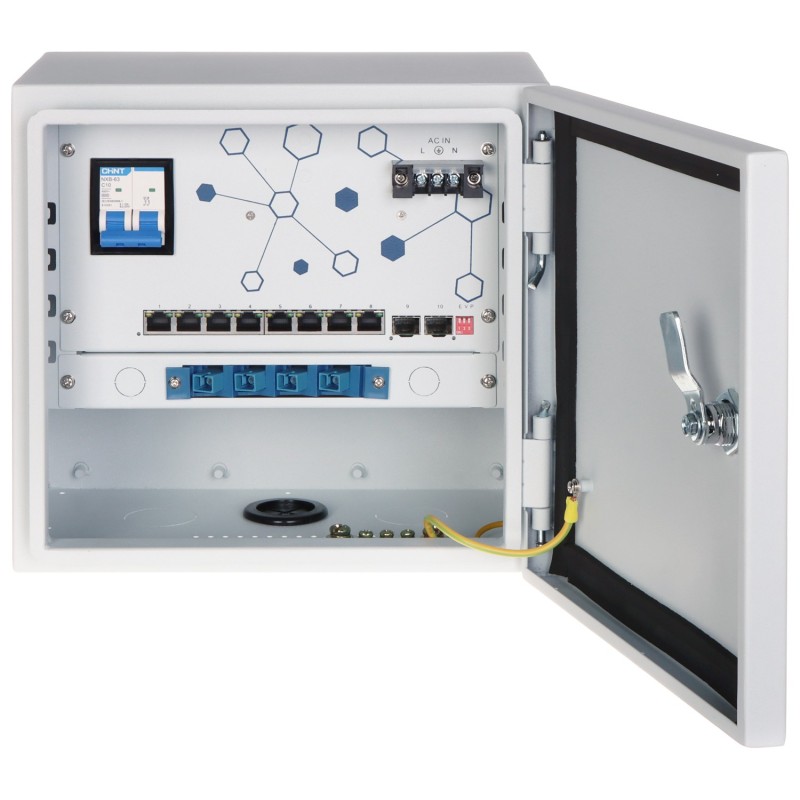

EXTERNAL CAMERA DIStrIBUTION POINT EXPERT-POE/Otd-82GSFP 8 PoE + 2 x SFP

Switch PoE:LAN ports:

8 x RJ45 10/100 Base-T ( 8 x PoE (802.3af/at) ), 2 x SFP (Uplink) 1000 Base-X

Management:

LED diodes:

Power, Link/Act, PoE

Transmission speed:

10 / 100 Mbps : 8 LAN & PoE ports, 1000 Mbps : 2 SFP (Uplink) ports

Maximal output power:

30 W @ PoE (802.3af/at) - 1 ... 8 ports

Maximal total power:

115 W

MAC addresses table:

16k

Operation modes:

E - EXTEND mode - ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250 m V - VLAN mode, 1 ... 8 ports are isolated from each other and separately work with the 9, 10 ports P - PoE Auto-check mode - monitoring of the ports that power PoE devices and automatic restart by cutting off the power supply when an unresponsive device is detected

Fiber Optic Distribution Box:

Number of line cables:

2

Number of splice cassettes:

1

Splice capacity:

8

Connector type:

SC / PC

Number of adapters:

4

Number of pigtails:

4

Housing:

Material:

Metal

Color:

Gray

"Index of Protection":

IP55

Cable entries:

3 pcs from the bottom Ø 39 mm

Main features:

The door is closed with a lock Fan cooler built-in

Maximum pole diameter:

350 mm

External dimensions:

280 x 260 x 210

General information:

Certificates:

CE, RoHS

Protections:

Protection against electrostatic discharge - Contact/Air (ESD/emP) : 6 / 8 kV Circuit Breaker : C10, protected lines L+N Lightning protection :

Maximal voltage : 385 V AC Nominal stroke current : 20 kA (8/20µs) Maximum stroke current : 40 kA (8/20µs)

Power supply:

100 ... 240 V AC, 50 / 60 Hz - Screw terminals

Operation temp:

-20 °C ... 65 °C

Weight:

5.65 kg

Dimensions:

280 x 260 x 205 mm

Guarantee:

2 years
