BUFFERED SWITCHING POWER SUPPLY ADAPTER AWZ-637 FOR ACCESS CONTROLLERS DAHUA ASC PULSAR

€361.94
Tax included

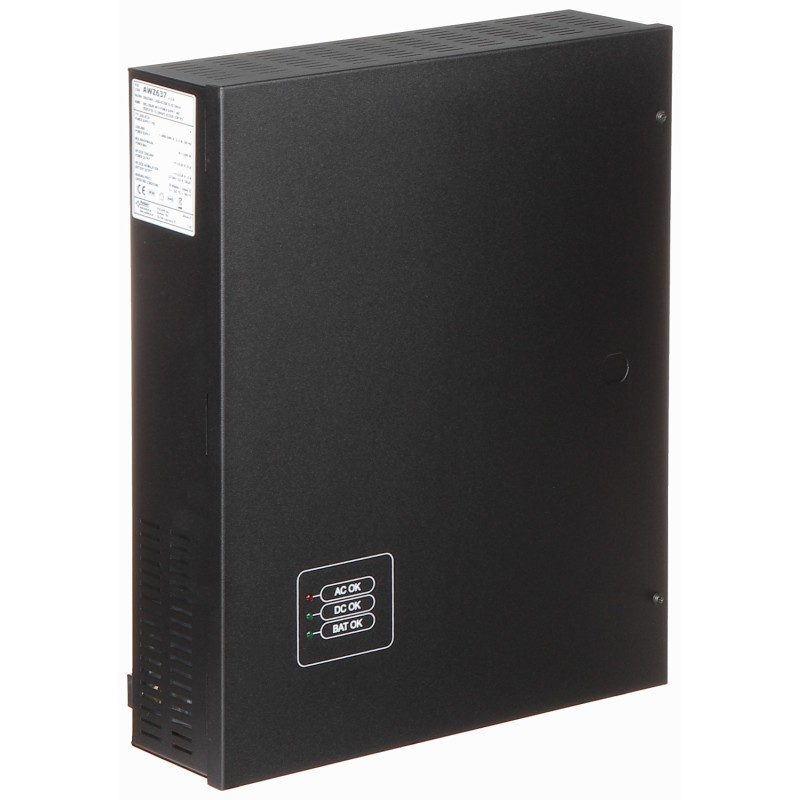

Metal housing with buffer pulse power supply 13.8VDC/6A and mounting rail DIN TS-35 The product is designed to work with DAHUA access controllers from the ASC21xxB, ASC12xxB series
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Input voltage: 230 V AC / 50 Hz
Output voltage: 11 V ... 13.8 V DC (buffer operation)
Max. output current (total): 7 A
Battery charging current: 1 A / 2 A
Power: 100 W
Number of outputs: 4
Tamper contact: 50 V DC / 0.5 A
Main features: • Built-in buffered power supply unit with battery and AC mains monitoring. Voltage distribution module, 4 circuits protected by 1.5A fuse. DIN TS-35 rail, Length : 185 mm. LED indication. Technical outputs of the relay type and OC. Place for battery - 12 V / 17 Ah
Protections: • Short-circuit. Overload. Overvoltage. Tamper. Reverse polarity connection. Discharge
Adapter operation control: • AC input voltage presence indication AC. DC output voltage presence indication DC. Battery fault indication. EPS FLT output - indicating AC power collapse. PSU output indicating DC voltage loss or power supply unit failure. LoB output - Low battery voltage
Operation temp: -10 °C ... 40 °C
Weight: 3.26 kg
Dimensions: 403 x 326 x 100 mm
Manufacturer / Brand: PULSAR
RPS15354
