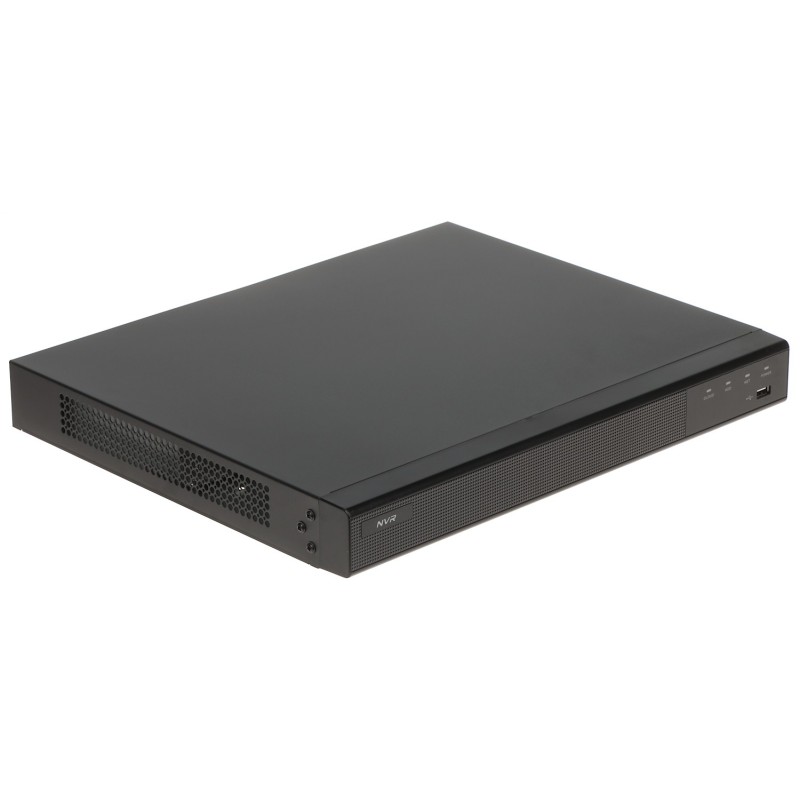

NVR APTI-N1612-P16-I3 16 CHANNELS PoE

Standard:

TCP/IP

Supported resolutions:

max. 12 Mpx - 4000 x 3000 px

Video outputs:

1 pcs HDMI 4K

1 pcs VGA

Audio support:

16 Channels - Audio from cameras, Bi-directional audio streaming support Compliance with the AAC standard

Audio inputs:

1 pcs CINCH

Audio outputs:

1 pcs CINCH

Image compression method:

H.265+ / H.265 / H.264+ / H.264

Bitrate:

160 Mbps

Supported hard drives:

2 x 10 TB SATA

Recording modes:

Manual, Sensor, Motion detection, Schedule

External storage devices backup:

Records backup at (.avi) format to USB (pendrive)

Searching and playback the records:

Records searching: timeline or file list. Playback: forward, fast

Playback max. 8 cameras in the same time @ 1080p

Network interface:

1 x RJ-45 10/100/1000 Base-TX

Network functions:

Network Client Software and IE browser: live view, playback and backup of the records, configuration of the recorder parameters

Network protocols:

IPv6, TCP/IP, HTTP, HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P, PPPoE

ONVIF:

Default IP address:

192.168.1.88

Default admin user / password:

admin / 12345

Mobile phones support:

Access by a cloud (P2P) Android: Free application , Android: Free application Android: Free application , iOS: Free application

Web browser access ports:

80, 5000, 554

PC client access ports:

80, 5000, 554

USB:

2 pcs USB 2.0

Serial ports:

Alarm inputs / outputs:

4 / 1

Intelligent image analysis:

Support for intelligent image analysis, available in cameras from the APTI-AI series

Mouse support:

Switch PoE:

16-port PoE Switch built-in : 15 W / Channel - PoE (802.3af)

Maximum total switch load:

200 W

Power supply:

100 ... 240 V AC, 50 / 60 Hz

Power consumption:

≤ 15 W (without HDD)

Operation temp:

-10 °C ... 55 °C

Weight:

2.55 kg

Dimensions:

380 x 323 x 51 mm

Supported languages:

Polish, English, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Ukrainian, Italian

Manufacturer / Brand:

APTI

Guarantee:

2 years
