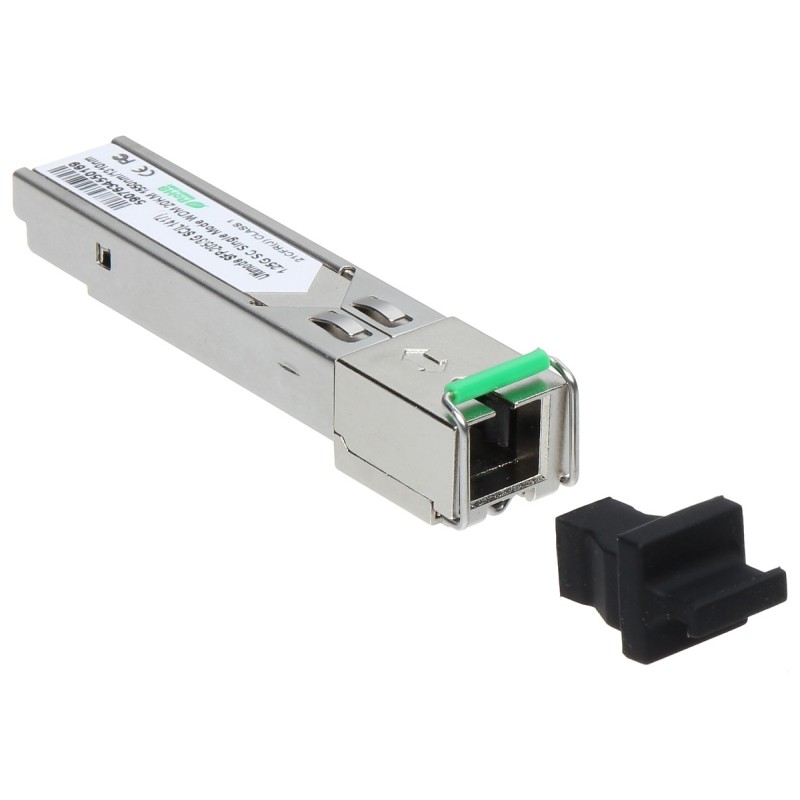

SINGLE-MODE MODulE SFP-205/3G/SC

Transmission protocols:

IEEE 802.3z 1000Base-FX

Fiber type:

8.3/125 µm, 8.7/125 µm, 9/125 µm, 10/125 µm - Single-mode fiber

Maximal transmission range:

20 km

Transfer rate:

max. 1.25 Gb/s

Number of used fibers:

1

Optical connectors:

SC

Light source / optical wavelength:

Laser FP - 1550 / 1310 nm (Tx / Rx)

Main features:

Wavelength-Division Multiplexing technology WDM (Tx 1550nm / Rx 1310nm)

Transmitter power:

-8 ... -3 dB

Receiver sensitivity:

≥ -22 dB

Power supply:

3.3 V DC

Operation temp:

0 °C ... 70 °C

Weight:

0.02 kg

Guarantee:

2 years
