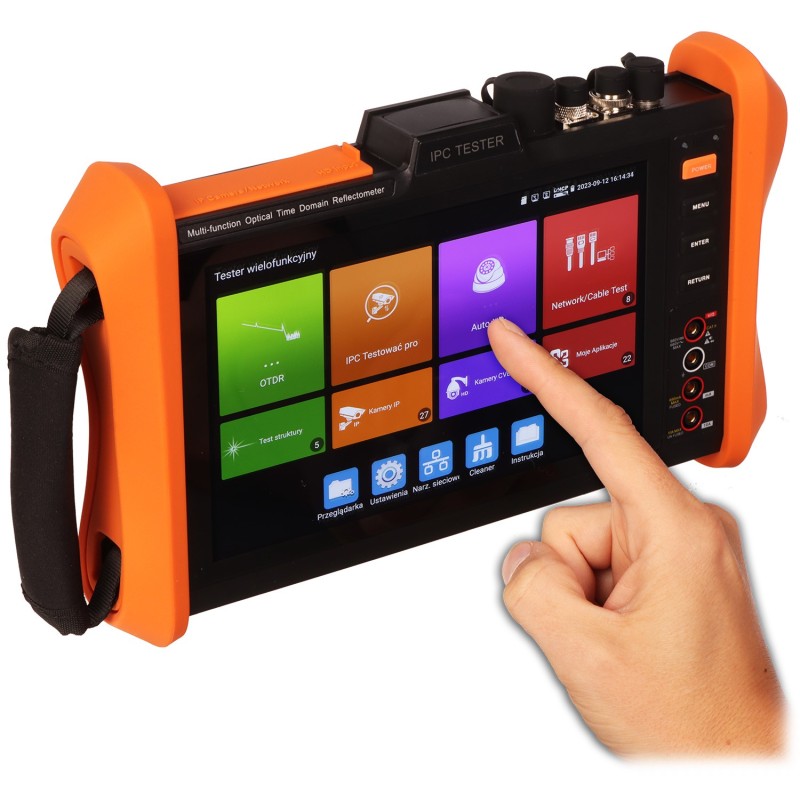

OPTICAL REFLECTOMETER (OtdR) WIth CCTV TESTER CS-R7-80H

Optical time-domain reflectometer (OtdR):

Optical wavelength : 1610 nm Dynamic range : 28 dB Wide measuring range ≤ 100 km Accuracy : ± (1 m + 5×10^-5 × distance + sampling interval) Connectors : FC / SC Measurement duration : 5 s, 10 s, 15 s, 30 s, 1 min, 2 min, 3 min

Optical power measurement:

Optical power measurement in fiber optic networks (ST and SC adapters)

Optical wavelength : 850, 1300, 1310, 1490, 1550, 1625 nm

Range : -70 ... +10 dBm

VLS (VFL) - Visual Fault Locator of fiber cable:

Laser LD, 650 nm, 10 mW

Range 8 km

Video standard:

AHD - 8 Mpx, HD-CVI - 8 Mpx, HD-TVI - 8 Mpx, TCP/IP - 8 Mpx, CVBS - PAL / NTSC

Display:

8 " IPS - capacitive touch screen, 1920 x 1200 px

Video input:

1 pcs AHD / HD-CVI / HD-TVI / CVBS - BNC socket, 1 pcs HDMI, 60 fps, 4K 1 pcs VGA

Video output:

Port LAN:

2 pcs - PoE cameras and switches support

Audio input:

1 pcs Mini Jack

Audio output:

1 pcs Mini Jack

Video signal level meter:

Video signal generator:

Serial ports:

RS-485

Protocols:

Support for over 30 RS485 protocols : Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MolYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MulTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(M-B), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC

Baud rates:

150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s

LAN (twisted-pair) or telephone cables testing:

UTP cables or phone lines connecting test with RJ-45 connectors

RS-485, lines test:

Data analysis from control device (the commands are displayed in hexadecimal)

Wi-Fi module:

Identification the wire in the group of wires:

Audio test:

Digital multimeter:

Measurement : voltage, current, resistance, continuity test, diode test, electrical capacity

tdR reflectometer:

Detecting and locating a cable break or short circuit, 180 m (max)

Operation as power source:

5 V DC / 2 A from USB port 12 V DC / 3 A 24 V DC / 2 A 48 V (PoE, LAN), 24 W

Battery power supply:

7.4 Li-Ion battery 7800 mAh 12 V DC / 2 A (power adapter included)

Estimated battery operation time:

max. 10 hours

Operation:

Graphical menu - touch control and by using the buttons

Main features:

Optical time-domain reflectometer (OtdR) AHD cameras test HD-CVI cameras test HD-TVI cameras test PAL/NTSC cameras test IP cameras test - Supported image compression methods : H.265, H.264, MJPEG Searching and view of IP cameras compatible with Onvif Motor units and PTZ (Speed Dome) cameras control IP cameras view from embedded applications - DH test tool, Hik test tool, UNV Test Tool, HuaWei Tool, TP-Link tool

EZView Embedded Internet browser - Google Chrome LAN connections monitoring IP addresses scanner PING - test the link using ICMP packets Detection of the connected port in switch LAN (twisted-pair) cables testing The Cable tracer application - easy cable location in a disordered bundle PoE cameras and switches support PoE power meter DC 5V / 12V / 24V / 48V power source tdR reflectometer Optical power meter VLS (VFL) - Visual Fault Locator of fiber cable Data monitor - serial port data analysis RS-485 Digital Multimeter Audio test Hotspot - Wi-Fi Playback the records VLC Media Player application installed - the ability to play multimedia files in many popular formats (.mp3, .mp4, .avi, .mpeg and others) Calculator Quickoffice package installed - creation and reading of .docx text documents, .xlsx spreadsheets and .pptx multimedia presentations Flashlight built-in Android 9

Operation temp:

-10 °C ... 50 °C

Permissible relative humidity:

30 % ... 90 %

Weight:

1.24 kg

Dimensions:

273 x 170 x 48 mm

Supported languages:

Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian

Guarantee:

2 years
