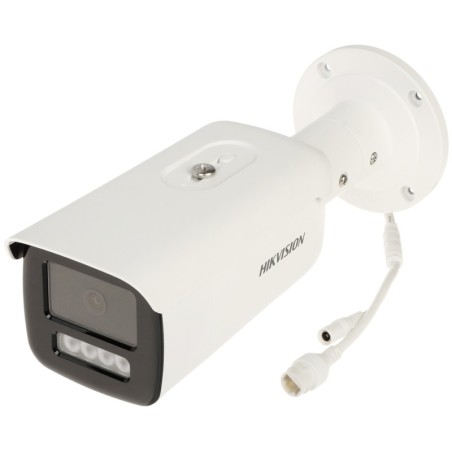

IP CAMERA DS-2CD2T83G2-4li(2.8MM) Smart Hybrid Light AcuSense - 8.3 Mpx, 4K UHD Hikvision

Standard:

IP

Resolution:

3840 x 2160 - 8.3 Mpx, 4K UHD ,

3200 x 1800 - 5.8 Mpx ,

2688 x 1520 - 4 Mpx ,

1920 x 1080 - 1080p

1280 x 720 - 720p

Sensor:

1/2.8 " Progressive Scan CMOS

Lens:

2.8 mm

View angle:

108 °

White light LED illuminator range:

80 m

Range of IR illumination:

80 m

Memory card slot:

Micro SD card support up to 512GB

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Alarm inputs / outputs:

Audio:

Main stream frame rate:

20 fps @ 8.3 Mpx

Interface:

10/100 Base-T (RJ-45)

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

Intelligent image analysis:

crossing the line (tripwire) intrusion classification of people and vehicles

Main features:

Camera from AcuSense series Smart Hybrid Light technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image ANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its NAS - Network Attached Storage support - allows to connect memory resources directly to the computer network SVC (Scalable Video Coding) - technology enabling the transfer of several sub-streams of different quality within one stream BLC - Back Light Compensation HLC - High Light Compensation (spot) Auto White Balance AGC - Automatic Gain Control Possibility to change the resolution, quality and bit rate Mirror - Mirror image Configurable Privacy Zones Sharpness - sharper image outlines Smart motion detection (with recognizing people and vehicles) Filtering of false alarms based on the recognition of persons and vehicles

Mobile phones support:

Port no.: 8000 or access by a cloud (P2P) Android: Free application iOS: Free application

Default IP address:

192.168.1.64

Default admin user / password:

admin / -

The administrator password should be set at the first start

Web browser access ports:

80

PC client access ports:

Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application

Mobile client access ports:

8000

Port ONVIF:

80

RTSP URL:

Main stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/ Sub stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/

Power supply:

PoE (802.3af), 12 V DC / 880 mA

Power consumption:

≤ 12 W @ PoE ≤ 10.5 W @ 12 V DC

Housing:

Compact, Metal

Color:

White

"Index of Protection":

IP67

Mechanical protection class:

Operation temp:

-30 °C ... 60 °C

Weight:

1.12 kg

Dimensions:

286 x 93 x 89 mm

Supported languages:

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Hungarian, Vietnamese, Italian

Manufacturer / Brand:

Hikvision

SAP Code:

311326168

Guarantee:

3 years
