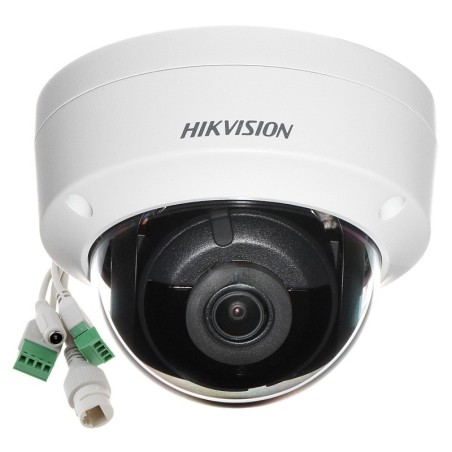

IP VANDALPROOF CAMERA DS-2CD2123G2-IS(2.8MM)(D) - 1080p Hikvision

Standard:

TCP/IP

Sensor:

1/2.8 " Progressive Scan CMOS

Matrix size:

2.1 Mpx

Scanning system:

Progressive

Resolution:

1920 x 1080 - 1080p

1280 x 720 - 720p

Lens:

2.8 mm

View angle:

107 °

Range of IR illumination:

30 m

RS-485 interface:

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Alarm inputs / outputs:

1 / 1

Audio:

External microphone input, Audio output, Bi-directional audio streaming support

Memory card slot:

Micro SD memory cards up to 256GB support (possible local recording)

Main stream frame rate:

25 fps @ 2 Mpx

Network interface:

10/100 Base-T (RJ-45)

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

Mobile phones support:

Port no.: 8000 or access by a cloud (P2P) Android: Free application iOS: Free application

Default admin user / password:

admin / -

The administrator password should be set at the first start

Default IP address:

192.168.1.64

Web browser access ports:

80

PC client access ports:

Port no.: 8000 or access by a cloud (P2P) - iVMS-4200 application

Mobile client access ports:

8000

Port ONVIF:

80

RTSP URL:

Main stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/ - with authorization Sub stream : rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/ - with authorization

Main features:

WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image SVC (Scalable Video Coding) - technology enabling the transfer of several sub-streams of different quality within one stream Anti-Flicker - The technology eliminates the tiring eyes flickering image effect NAS - Network Attached Storage support ANR - Automatic Network Replenishment allows to save image to the card when the network connection with DVR is break (network failure) and next synchronize its BLC - Back Light Compensation HLC - High Light Compensation (spot) Mirror - Mirror image Motion Detection - classification of people and vehicles Configurable Privacy Zones Possibility to change the resolution, quality and bit rate RESET button Sharpness - sharper image outlines Intelligent Image Analysis : crossing the line (tripwire), intrusion, detection of entry into the area / exit from the area - classification of people and vehicles, face detection

Power supply:

PoE (802.3af), 12 V DC / 500 mA

Power consumption:

≤ 7.5 W @ PoE (802.3af) ≤ 6 W @ 12 V DC

Housing:

Dome, Metal

Vandal-proof:

IK10

"Index of Protection":

IP67

Color:

White

Operation temp:

-30 °C ... 60 °C

Weight:

0.55 kg

Dimensions:

Ø 111 x 85 mm

Supported languages:

Polish, English, Bulgarian, Croatian, Czech, Danish, Estonian, Finnish, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian

Manufacturer / Brand:

Hikvision

SAP Code:

311319893

Guarantee:

3 years
