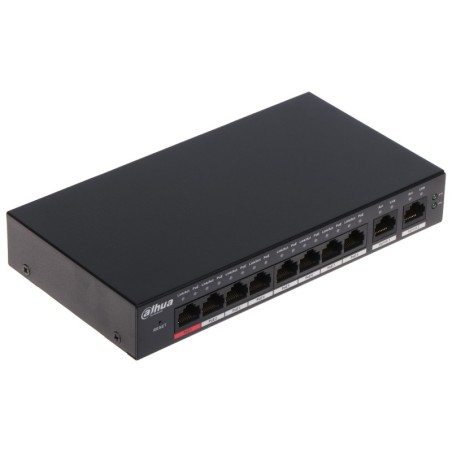

SWITCH POE S4100-8ET2GT-96-C 8-PORT DAHUA

LAN ports:

8 x RJ45 10/100 Base-T ( 1 x Hi-PoE (802.3bt) + 7 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T - Uplink

Transmission speed:

10 / 100 Mbps : 8 LAN & PoE ports, 10 / 100 / 1000 Mbps : 2 Uplink ports

Maximal output power:

90 W / port Hi-PoE / PoE 802.3bt - Port 1 30 W / port PoE 802.3af/at - 2 ... 8 ports

Maximal total power:

96 W

MAC addresses table:

16k

Management:

Operation modes:

Long Distance PoE On : 250 m, 10 Mbps @ UTP cat. 5e, 6

LED diodes:

Power, System, Link/Act, PoE

Main features:

Switch is managed through the web and the cloud (DoLynk Care application) PoE power mode : The device supports 8-pin power supply - wires : 1-2(+), 3-6(-), 4-5(+), 7-8(-) Intelligent management of Power Supply Unit power’s output stage protection against lightning discharges and voltage differences and strokes between devices Watchdog PoE Compliance with the LLDP protocol Data Flow Control (802.3x) DHCP client RESET button Kensington Lock Possibility to mount to the wall

Certificates:

CE

Protections:

Protection against lightning discharges (common/differential) : 4 / 2 kV Protection against electrostatic discharge - Contact/Air (ESD/emP) : 6 / 8 kV

Housing:

Desktop, Metal

Power supply:

53 V DC / 1.81 A (power adapter included)

Power consumption:

max. 96 W

Operation temp:

-10 °C ... 55 °C

Weight:

0.49 kg

Dimensions:

190 x 100 x 30 mm

Manufacturer / Brand:

DAHUA

Guarantee:

3 years
