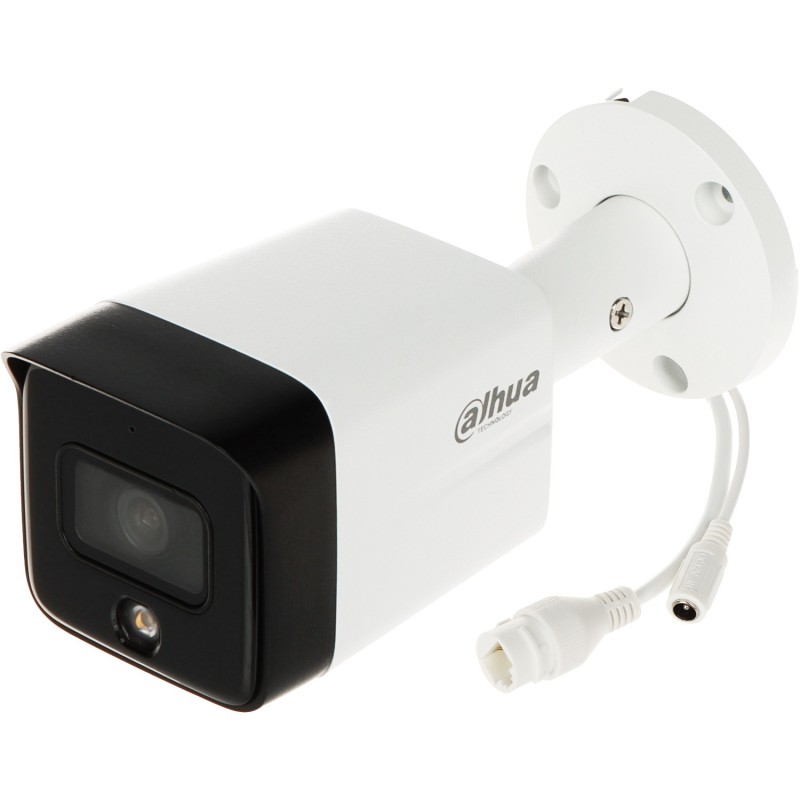

IP CAMERA IPC-HFW1639TC-A-IL-0280B-S6 Smart Dual Light - 6 Mpx 2.8 mm DAHUA

Standard:

IP

Resolution:

3200 x 1800 - 6 Mpx ,

2880 x 1620 - 4.7 Mpx ,

2688 x 1520 - 4 Mpx ,

2048 x 1536 - 3 Mpx ,

2304 x 1296 - 3 Mpx ,

1920 x 1080 - 1080p ,

1280 x 960 - 1.3 Mpx ,

1280 x 720 - 720p

Sensor:

1/2.7 " Progressive Scan CMOS

Lens:

2.8 mm

View angle:

110 °

Range of IR illumination:

30 m

White light LED illuminator range:

30 m

S/N ratio:

> 56 dB

Memory card slot:

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / MJPEG

Alarm inputs / outputs:

Audio:

Microphone built-in Audio transmission via network Audio detection

Main stream frame rate:

20 fps @ 6 Mpx 25 fps @ 4 Mpx

Network interface:

10/100 Base-T (RJ-45)

WEB Server:

Built-in

Max. number of on-line users:

6

ONVIF:

Mobile phones support:

Port no.: 37777 or access by a cloud (P2P) Android: Free application iOS (iPhone): Free application

Default IP address:

192.168.1.108

Default admin user / password:

admin / -

The administrator password should be set at the first start

Web browser access ports:

80, 37777

PC client access ports:

37777

Mobile client access ports:

37777

Port ONVIF:

80

RTSP URL:

rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream

rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream

Intelligent image analysis:

Human detection

Main features:

When Smart Dual Light is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves the image quality D-WDR - Wide Dynamic Range 3D-DNR - Digital Noise Reduction ROI - improve the quality of selected parts of image BLC/HLC - Back Light / High Light Compensation Possibility to change the resolution, quality and bit rate Image rotation and mirror Motion Detection - max. 4 configurable zones Privacy zones - max. 4

Power supply:

PoE (802.3af), 12 V DC / 330 mA

Power consumption:

≤ 4 W @ 12 V DC ≤ 5.3 W @ PoE

Housing:

Compact - Metal

Color:

White + Black

"Index of Protection":

IP67

Mechanical protection class:

Operation temp:

-40 °C ... 60 °C

Weight:

0.44 kg

Dimensions:

173 x 70 x 70 mm

Supported languages:

Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian

Manufacturer / Brand:

DAHUA

Guarantee:

3 years
