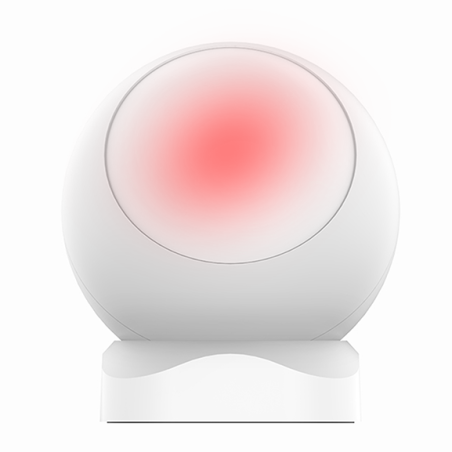

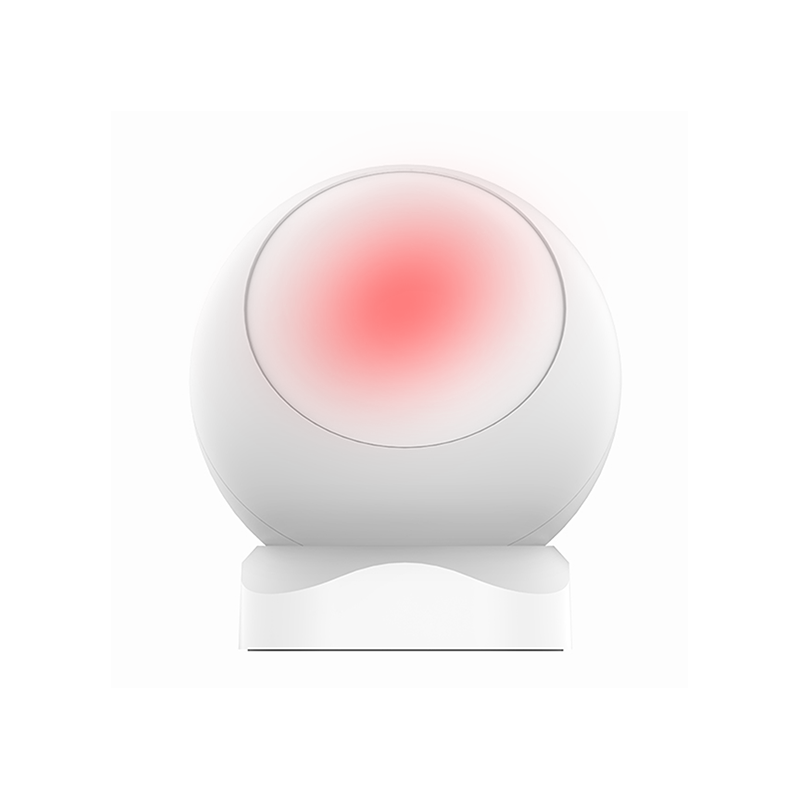

PIR presence motion sensor TUYA PS ZigBee series

PS Series ZigBee 3.0 TUYA SMART presence motion sensor

This offer applies to: ZigBee 3.0 Tuya motion, presence sensor

The latest generation ZigBee 3.0 protocol together with the Tuya Smart application allows you to create a truly smart home.

Attention! This device requires a TUYA ZigBee 3.0 gateway available in our offer:

The ZigBee PIR motion and presence sensor offers precise motion detection. Additionally, in the settings you can configure the no-motion detection period for the automation of other devices.

ZigBee 3.0 sensors ensure fast connection to your ZigBee gateway in the event of a change in state. ZigBee Mesh, greater automation possibilities, local memory for parameters and devices.

You can automate all your other devices from the TUYA application with the parameters of this sensor.

Discover completely new possibilities of the TUYA Smart Life system

Unlike WiFi Neo devices, automations take place locally on your gateway, not in the cloud, which gives you a huge advantage in execution time and functionality.

Specification:

Range: 8 Meters

ZigBee 3.0 communication protocol\ n

Compatibility with the application: TUYA SMART liFE

Viewing angle: 90 degrees

Battery: CR123A included

Dimensions: 48.4 x 53.4 mm

Operating temperature: -10 +50 degrees

Humidity operation: 10% - 90% without condensation

Adding a sensor to the TUYA Zigbee gateway and creating automation is equally simple and intuitive.

Below is an example of automation. If there is no movement in the room for 3 minutes, turn off the light bulb.

Automation rules can be configured based on:

Motion detection

No movement

Time since motion detection

Time since no movement

\ n

The basics of the ZigBee protocol.

The ZigBee protocol operates on the 2.4 GHz frequency, which propagates well in buildings.

ZigBee connectivity is a MESH connection, which means that each device ZigBee acts as a relay for other devices. If a remote sensor does not have communication with the ZigBee Gateway, it is sufficient that it has radio communication with another ZigBee device that has communication with the gateway. The devices work in a mesh chain of connections, which ensures reliability and certainty of the connection.

ZigBee devices and sensors consume very little energy, which gives a long battery life.

Devices using the ZigBee protocol connect to the control panel when the state changes to 0 .2 Seconds. Wifi devices take about 5 seconds to connect to the Wifi network after a state change. ZigBee devices have a huge advantage when it comes to automating smart rules.

Most configured ZigBee device automations are performed on the local gateway. Not in the Cloud. Typical rule > If motion is detected (PIR sensor), turn on the light. The execution time is about 0.5 seconds.

The execution time of the same rule on WiFi devices is about 3-7 seconds.

The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history saved for months back.

Included:

Motion Presence Sensor Series PS ZigBee 3.0 Tuya

Magnetic holder

Double-sided tape

Battery

Pairing instructions in Polish.

Product code: SNTZ063
