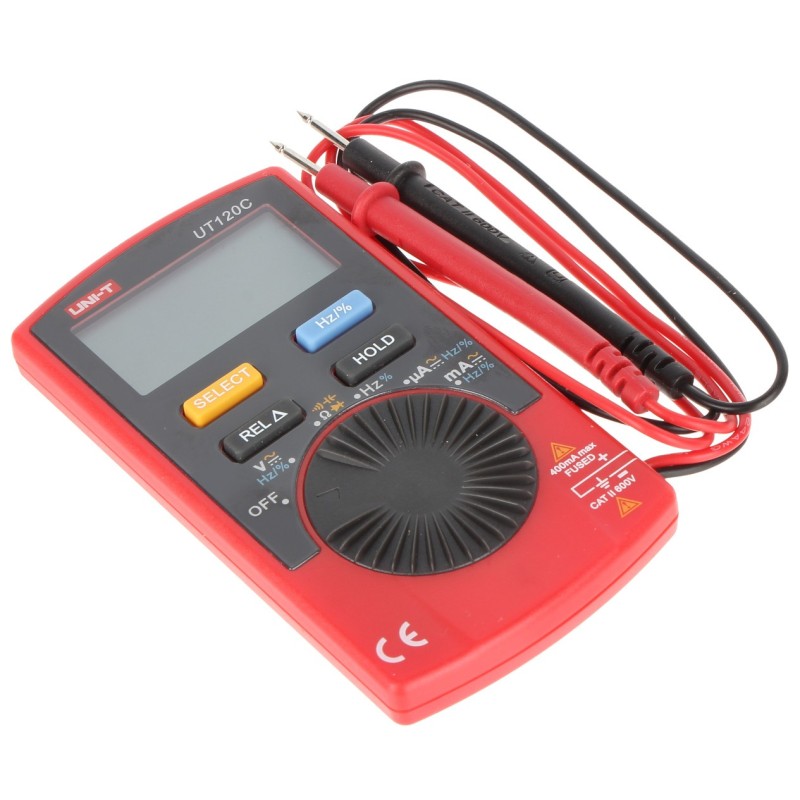

UNIVERSAL METER UT-120C UNI-T

DC voltage measurement:

400 mV ± (0.8% + 3) @ 0.1 mV ,

4 V ± (0.8% + 1) @ 1 mV ,

40 V ± (0.8% + 1) @ 10 mV ,

400 V ± (0.8% + 1) @ 100 mV ,

600 V ± (1% + 3) @ 1 V

AC voltage measurement:

4 V ± (1.2% + 3) @ 1 mV ,

40 V ± (1.2% + 3) @ 10 mV ,

400 V ± (1.2% + 3) @ 100 mV ,

600 V ± (1.5% + 5) @ 1 V

DC current measurement:

400 µA ± (1% + 3) @ 0.1 µA ,

4 mA ± (1% + 3) @ 1 µA ,

40 mA ± (1.2% + 5) @ 0.01 mA ,

400 mA ± (1.2% + 5) @ 0.1 mA

AC current measurement:

400 µA ± (1.5% + 5) @ 0.1 µA ,

4 mA ± (1.5% + 5) @ 0.001 mA ,

40 mA ± (2% + 5) @ 0.01 mA ,

400 mA ± (2% + 5) @ 0.1 mA

Resistance measurement:

400 Ω ± (1.2% + 2) @ 0.1 Ω ,

4 kΩ ± (1% + 2) @ 1 Ω ,

40 kΩ ± (1% + 2) @ 10 Ω ,

400 kΩ ± (1% + 2) @ 100 Ω ,

4 MΩ ± (1.2% + 2) @ 1 kΩ ,

40 MΩ ± (1.5% + 2) @ 10 kΩ

Capacitance measurement:

4 nF ± (4% + 3) @ 0.001 nF ,

40 nF ± (4% + 3) @ 0.01 nF ,

400 nF ± (4% + 3) @ 0.1 nF ,

4 µF ± (4% + 3) @ 0.001 µF ,

40 µF ± (4% + 3) @ 0.01 µF ,

100 µF ± (5% + 10) @ 0.1 µF

Inductance measurement:

Frequency measurement:

99.99 Hz ± (0.5% + 3) @ 0.01 Hz

999.9 Hz ± (0.5% + 3) @ 0.1 Hz ,

9.999 kHz ± (0.5% + 3) @ 0.001 kHz ,

99.99 kHz ± (0.5% + 3) @ 0.01 kHz ,

1 % ... 99.9 % @ 0.1 %

Temperature measurement:

Automatic change of measuring ranges:

hFE:

Diode test:

Sound signal of the continuity test:

Checking TTL logic states:

RS-232:

USB:

Main features:

Hold - stopping the meter reading, REL - relative measurement mode, Large, readable LCD display, Low battery indicator, Aesthetic and solid construction, Automatic shutdown after 30 minutes of inactivity

Power supply:

CR2032 lithium battery - included

Weight:

0.08 kg

Dimensions:

110 x 58 x 13 mm

Manufacturer / Brand:

UNI-T

Guarantee:

2 years
