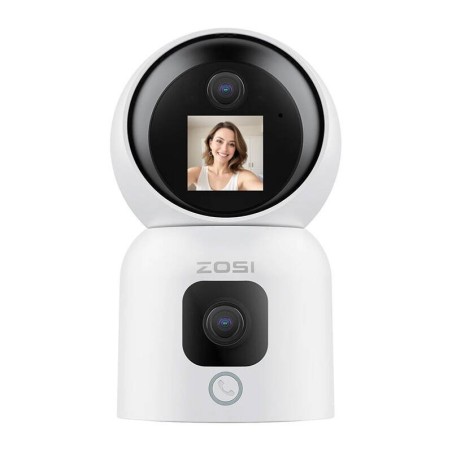

IP Indoor Camera ZOSI C528M WiFi 5G Dual 6MP

ZOSI C528M WiFi 5G Dual 6MP indoor IP camera.

Keep tabs on what's happening at home in your absence. The ZOSI C528M indoor IP camera provides excellent 6MP image quality and a wide range of features, such as automatic motion tracking, to guarantee security and convenience in your home. In addition, you can communicate with your household members thanks to two-way audio support. What's more, the camera is easy to use, and the kit includes the necessary accessories for installation and proper operation of the equipment.

Detailed image in all conditions

The ZOSI C528M camera is equipped with a 6 MP (2304*1296) sensor, which provides crystal clear and detailed images. The 1/3.0 progressive scan CMOS sensor and 4mm lens at F2.0 guarantee excellent detail even in low light. Automatic switching between day and night modes, thanks to its sensitivity to soft light, enables night monitoring up to 10 meters.

Simple control and advanced features

The ZOSI C528M supports dual video transmission, allowing simultaneous transmission of 3MP (23041296) and D1 (640360) quality video. The 1.44-inch screen displays date, time, weather, temperature and humidity. In addition, two-way video calling and automatic motion tracking features make the camera ideal for everyday use in the home.

Peace of mind and protection with smart features

The ZOSI C528M camera uses the H.265 video compression standard, which optimizes the use of bandwidth and recording space. It supports various types of recording, including continuous and alarm recording, and offers local Micro SD card storage (up to 128GB) and cloud storage. Intelligent motion and intrusion detection features and the ability to set up to 5 privacy areas ensure complete security.

Durability and versatility

The camera is powered by a USB-C cable, which you'll find included along with a power adapter. What's more, the ZOSI C528M is rated to operate in temperatures from -10°C to 60°C and humidity up to 95% (non-condensing). In turn, the included components make it easy to mount it on a flat surface, ceiling or wall.

Included

camera

mounting base

template for mounting the base

power adapter with USB-A to USB-C cable

screws and wall plugs

user manual

Manufacturer

ZOSI

Model

C528M

Camera

Pixels

6 MP (2304*1296)

Image sensor

1/3.0 CMOS with progressive scanning

Lens

4 mm at F2.0

Lens interface

M12

Luminance threshold

Sensitivity to soft light: Switching from day to night mode: <3Lux, Switching from night to day mode: >9 lux

Infrared

x4

Warm light

None

Day / night mode / night viewing distance

ICR / 10 m

Frame rate

15fps, adaptive network transmission frame rate

Dual transmission

Main transmission: 3MP (2304*1296) sub: D1(640*360)

PTZ camera

Resolution / image sensor

3MP (2304*1296)/1/3.0 CMOS with progressive scanning

Lens type / lens interface

4.0mm F2.0/M12

Minimum illumination

Soft light sensitivity: > 3Lux (daylight mode): < 3Lux (infrared light on)

Infrared lights / warm light

2 pieces / none

Tryb dzienny / nocny / odległość widzenia w nocy

ICR / 10m

Podwójna transmisja

15 frames per second, adaptive network transmission frame rate

Image settings

Main transmission: 3MP (2304*1296), sub: D1 (640*360)

Screen size/resolution

1.44 inches /128*128

Video compression standard

H.265

Screen interface

SPI AW

Display functions

Date and time display, weather/temperature and humidity display, two-way video connections

Video compression standard / bit rate

H.265/H.265+ master profile / 32Kbps~2Mbps

Video aspect ratio

16:9

Privacy area setting / ROl

Supported (up to 5 areas) / Supported

Image settings / OSD watermark

HD/SD switching support, image duplication / Supported

Audio input/output

Built-in speaker with microphone

Audio compression standard

Support for HD/SD switching, image duplication

White balance / gain control

G.711A

Noise reduction

Digital 3D

Backlight compensation

Supported

Wide dynamic range

Supported

Dynamic range / signal-to-noise ratio

81dB / 38dB

Status indicator

Button with white circle (Slow flashing: no network, Fast flashing: call/received call, Continuous light: network connection)

Signal-to-noise ratio / flash

Supported / GD 1G

WiFi

2.4 GHz/5 GHz EEE 802.11a/b/g/n

Protocol

TCPIP, HTTP, DHCP, DNS, MQTT, P2P, ONVIF, RTSP

Storage

Cloud storage with the ability to switch between dual-lens recording

Software / max. number of users

ZOSI Smart (Android/iOS) AVSS (PC/MacBook) / 5 users

Smart detection

Detection of motion, human, intrusion, etc.

Video connection

Press or gesture with a hand movement to call family members at any time for a two-way video call

People tracking / audio

Automatic people tracking / two-way audio

Night vision type / alarm

Infrared night vision

Recording types / modes

Continuous recording, alarm recording Master transmission / slave transmission

One-button reset / Local memory

Supported / Micro SD card (max. 128 GB), NVR cloud storage

Power supply / power consumption

DC 5W/2A (type C interface) / 5W MAX

Splash protection / installation

Waterproof / Flat surface / ceiling / wall mounting

Operating temperature and humidity

-10°C to 60°C, humidity below 95% (non-condensing)

Dimensions

152×90×90 mm

Weight

285g
