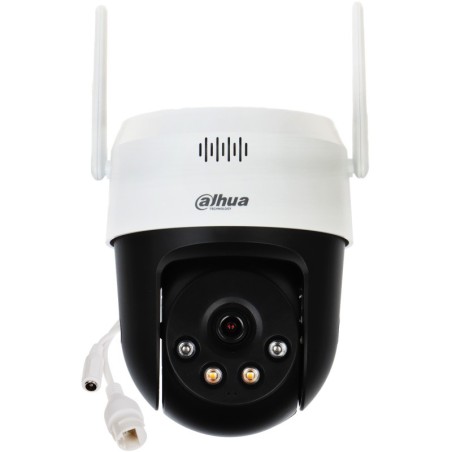

IP SPEED DOME CAMERA OUtdOOR P3AE-PV Picco A2 Wi-Fi - 3 Mpx 4 mm DAHUA

Standard:

IP

Resolution:

2304 x 1296 - 3 Mpx ,

1920 x 1080 1080p ,

1280 x 720 - 720p

Sensor:

1/2.8 " Progressive Scan CMOS

Lens:

4 mm

View angle:

87 °

Optical zoom:

Digital zoom:

Range of IR illumination:

30 m

White light LED illuminator range:

30 m

Video output:

Rotation speed (manual control):

0.1 °/s ... 74 °/s (horizontal) 0.1 °/s ... 36 °/s (vertical)

Preset rotation speed:

max. 62 °/s (horizontal)

max. 36 °/s (vertical)

Horizontal rotation range:

0 ° ... 345 ° - Rotation of the head is limited by stops

Vertical rotation range:

0 ° ... 80 °

RS-485 interface:

Number of presets:

300

Horizontal scan:

Route settings:

Image compression method:

H.265+ / H.264 / H.265 / MJPEG / H.264+

Alarm inputs / outputs:

Main stream frame rate:

25 fps - 5 Mpx

Memory card slot:

Micro SD card support up to 256GB

Interface:

Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n, 10/100 Base-T (RJ-45)

WEB Server:

Built-in, NVR compliance

Max. number of on-line users:

20

ONVIF:

Audio:

Microphone built-in Speaker built-in Audio detection Bi-directional audio streaming support

Mobile phones support:

Port 37777 Android: Free application iOS (iPhone): Free application

Default admin user / password:

admin / -

The administrator password should be set at the first start

Default IP address:

192.168.1.108

Web browser access ports:

80, 37777

PC client access ports:

37777

Mobile client access ports:

37777

Port ONVIF:

80

RTSP URL:

rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main stream

rtsp://admin:hasło@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Sub stream

Intelligent image analysis:

intrusion linkage tracking crossing the line (tripwire)

Main features:

When Smart Dual Light is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves the image quality Active deterrence function - Light and sound alarm Intelligent Object Tracking Wi-Fi module - IEEE 802.11 b/g/n, D-WDR - Wide Dynamic Range Day/night mode BLC - Back Light Compensation HLC - High Light Compensation (spot) ICR - Movable InfraRed filter motion detection based on human detection SMD 3.0 - searching for an object classified as: human, motor vehicle

Power supply:

12 V DC / 1 A

Power consumption:

≤ 11 W

Housing:

Speed Dome, Plastic

Color:

White

"Index of Protection":

IP66

Operation temp:

-30 °C ... 55 °C

Weight:

0.44 kg

Dimensions:

Ø 111 x 141 mm (without bracket)

Supported languages:

English

Manufacturer / Brand:

DAHUA

Guarantee:

3 years
