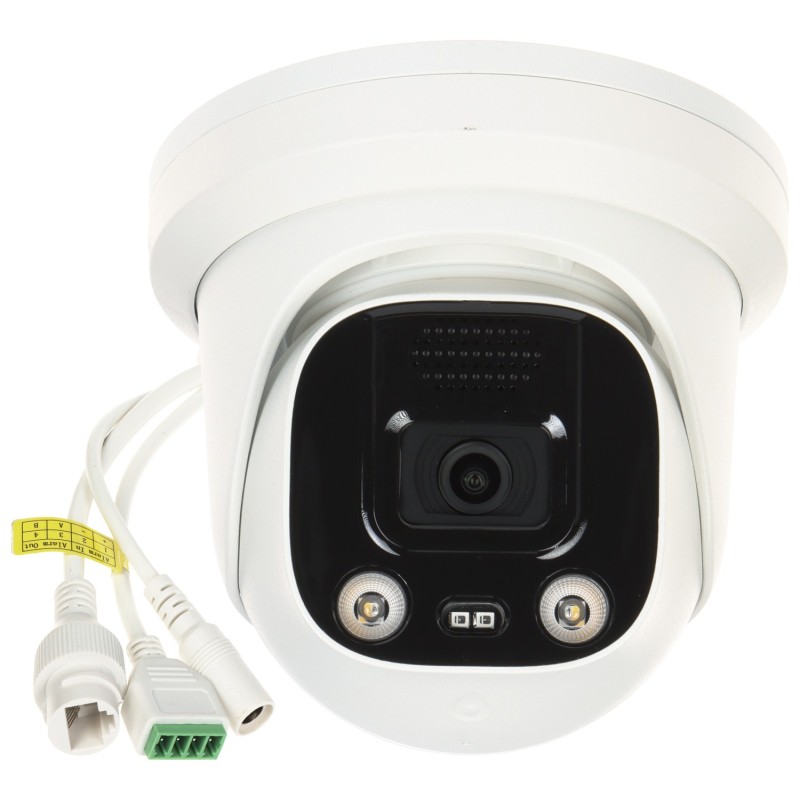

IP CAMERA APTI-AI508V3IW-36AD Smart Dual Illumination Active Deterrence - 5 Mpx 2.8 mm

Standard:

IP

Resolution:

2592 x 1944 - 5 Mpx ,

2560 x 1440 - 3.7 Mpx ,

1920 x 1080 - 1080p ,

1280 x 720 720p

Sensor:

1/2.8 " SONY Starvis™ Back-illuminated CMOS

Lens:

2.8 mm @ F1.6

View angle:

106 °

Range of IR illumination:

25 m

White light LED illuminator range:

25 m

Memory card slot:

Micro SD memory cards up to 1TB support (possible local recording)

Image compression method:

H.265+ / H.265 / H.264+ / H.264 / AVI / JPEG

Alarm inputs / outputs:

1 / 1

Audio:

Microphone built-in, Speaker built-in, Bi-directional audio streaming support

Main stream frame rate:

max. 25 fps @ 5 Mpx

Interface:

10/100 Base-T (RJ-45)

WEB Server:

Built-in

Max. number of on-line users:

10

ONVIF:

19.12

Intelligent image analysis:

intrusion - classification of people and vehicles crossing the line (tripwire) - classification of people and vehicles detection of people gathering (human silhouette) loitering detection (human silhouette) motion detection based on human detection

Main features:

Smart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality Active deterrence function - Red and blue LEDs, Beep signal Day/Night mode - configurable ICR - Movable InfraRed filter Configurable: brightness, contrast, saturation Sharpness - sharper image outlines Mirror - Mirror image 3D-DNR - Digital Noise Reduction WB - White Balance Flicker Control - The technology eliminates the tiring eyes flickering image effect video tampering HLC - High Light Compensation (spot) Corridor mode ROI - improve the quality of selected parts of image BLC - Back Light Compensation WDR - Wide Dynamic Range Motion Detection Privacy zones - max. 3 AGC - Automatic Gain Control

Mobile phones support:

Port no.: 80 or access by a cloud (P2P) Android: Free application iOS (iPhone): Free application

Default IP address:

192.168.1.168

Default admin user / password:

admin / admin

Web browser access ports:

80

PC client access ports:

80

Mobile client access ports:

80

Port ONVIF:

80

RTSP URL:

rtsp://user:password@ip_address:80/0 - Main stream

rtsp://user:password@ip_address:80/1 - Sub stream

Power supply:

PoE (802.3af), 12 V DC / 350 mA

Power consumption:

≤ 4.2 W

Housing:

Dome, Metal

Color:

White

"Index of Protection":

IP67

Mechanical protection class:

Operation temp:

-30 °C ... 60 °C

Weight:

0.73 kg

Dimensions:

Ø 127 x 120 mm

Supported languages:

Polish, English, French, Russian, Hebrew, Spanish, Portuguese, Italian, Ukrainian, Hungarian

Manufacturer / Brand:

APTI

Guarantee:

2 years
